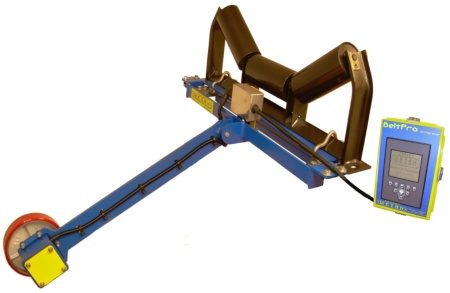

Single Idler Scale System

• Up to 10,000 TPH
• 18″ to 72″ Width
• SAME Great Price
• 0.50% – 2% Accuracy Typical

Price Includes Weigh Bridge, Speed Sensor, and Integrator, F.O.B.

Idler NOT Included, Shown for Illustration

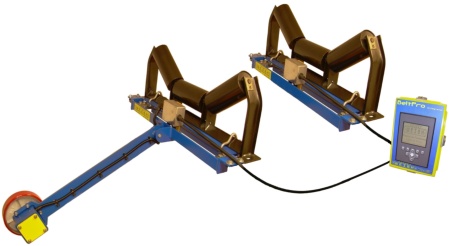

Dual Idler Scale System

• Up to 10,000 TPH
• 18″ to 72″ Width
• SAME Great Price
• 0.50% – 1% Accuracy Typical

Price Includes Weigh Bridge, Speed Sensor, and Integrator, F.O.B.

Idler NOT Included, Shown for Illustration

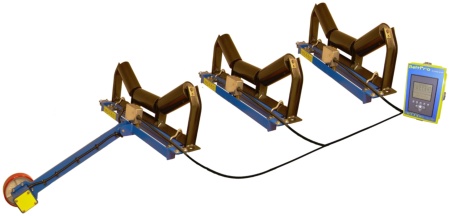

Three Idler Scale System

• Up to 10,000 TPH
• 18″ to 72″ Width
• SAME Great Price
• 0.25% – 0.50% Accuracy Typical

Price Includes Weigh Bridge, Speed Sensor, and Integrator, F.O.B.

Idler NOT Included, Shown for Illustration

Four Idler Scale System

• Up to 10,000 TPH
• 18″ to 72″ Width
• SAME Great Price
• 0.25% Accuracy Typical

Price Includes Weigh Bridge, Speed Sensor, and Integrator, F.O.B.

Idler NOT Included, Shown for Illustration

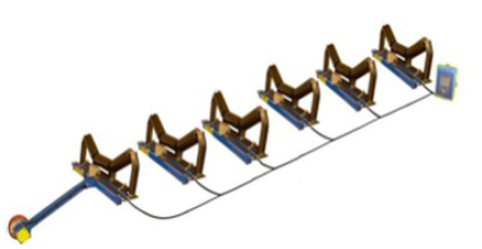

Six Idler Scale System

• Up to 10,000 TPH
• 18″ to 94″ Width
• SAME Great Price
• 0.18% Accuracy Typical

Price Includes Weigh Bridge, Speed Sensor, and Integrator, F.O.B.

Idler NOT Included, Shown for Illustration

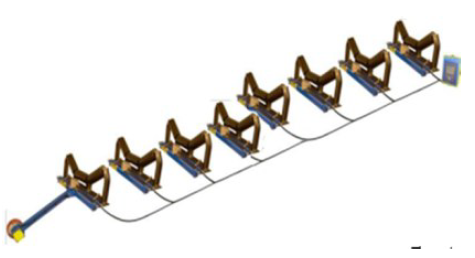

Eight Idler Scale System

• Up to 10,000 TPH
• 18″ to 94″ Width
• SAME Great Price
• 0.125% Accuracy Typical

Price Includes Weigh Bridge, Speed Sensor, and Integrator, F.O.B.

Idler NOT Included, Shown for Illustration

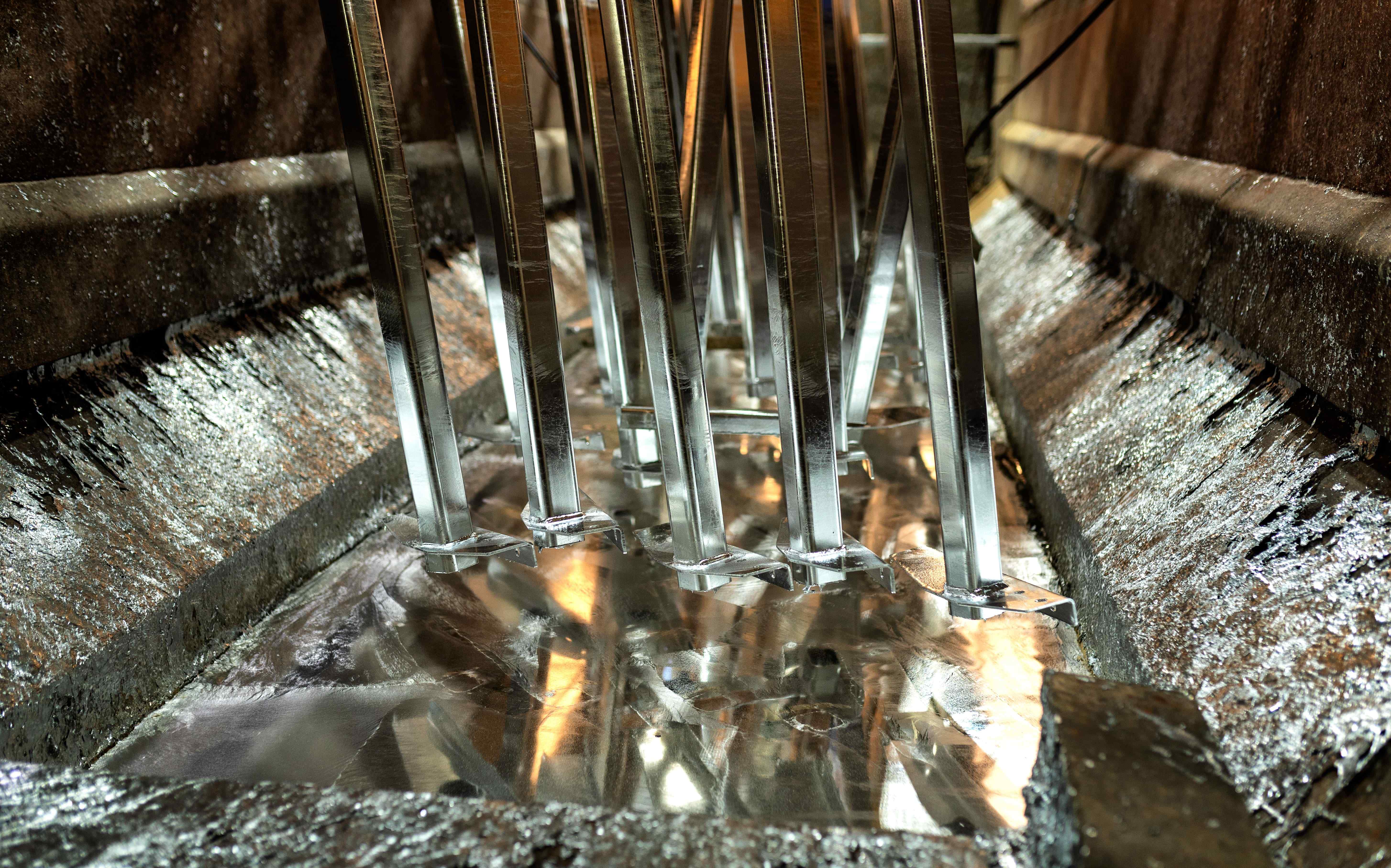

Galvanized Coating

The Scale Weigh Bridge and Speed Sensor can be hot dipped galvanized for the ultimate in corrosion protection! A good option for scales in corrosive environments.

Additional costs apply.

Billboard Display

For Hard Wire Connection

Remote Totalizer with Rate Meter

• Large and Bright Total or Rate
• Wired or wireless
• Good option for your Loader to see his output from a distance

Scale Calibration Test Weights

• 23 Lbs (10.4 Kg) Average Weigh
• Fabricated Steel & Powder Coat Finish
• Precision Weighed & Stamped

Shaft Mount Speed Sensor

• Threaded (1/2?) Shaft for Easy Coupling
• Greased Heavy Duty Bearings
• Junction Box Included
• IP67 NEMA 4 Enclosure

Price includes one Shaft Mount Speed Sensor, Junction Box, and six-foot Cable/Hose Lead, F.O.B.

Wireless Radio Modern Set

• FCC-Industry Canada Approved
• 1 watt, 915 MHZ Spread Spectrum
• Integrated Antenna (3000 ft range)
• Optional Long Range Antenna (2 mile range)

Price includes one set of Point to Point Modems, F.O.B.

Point to Multi-Point Networks also available for additional cost.

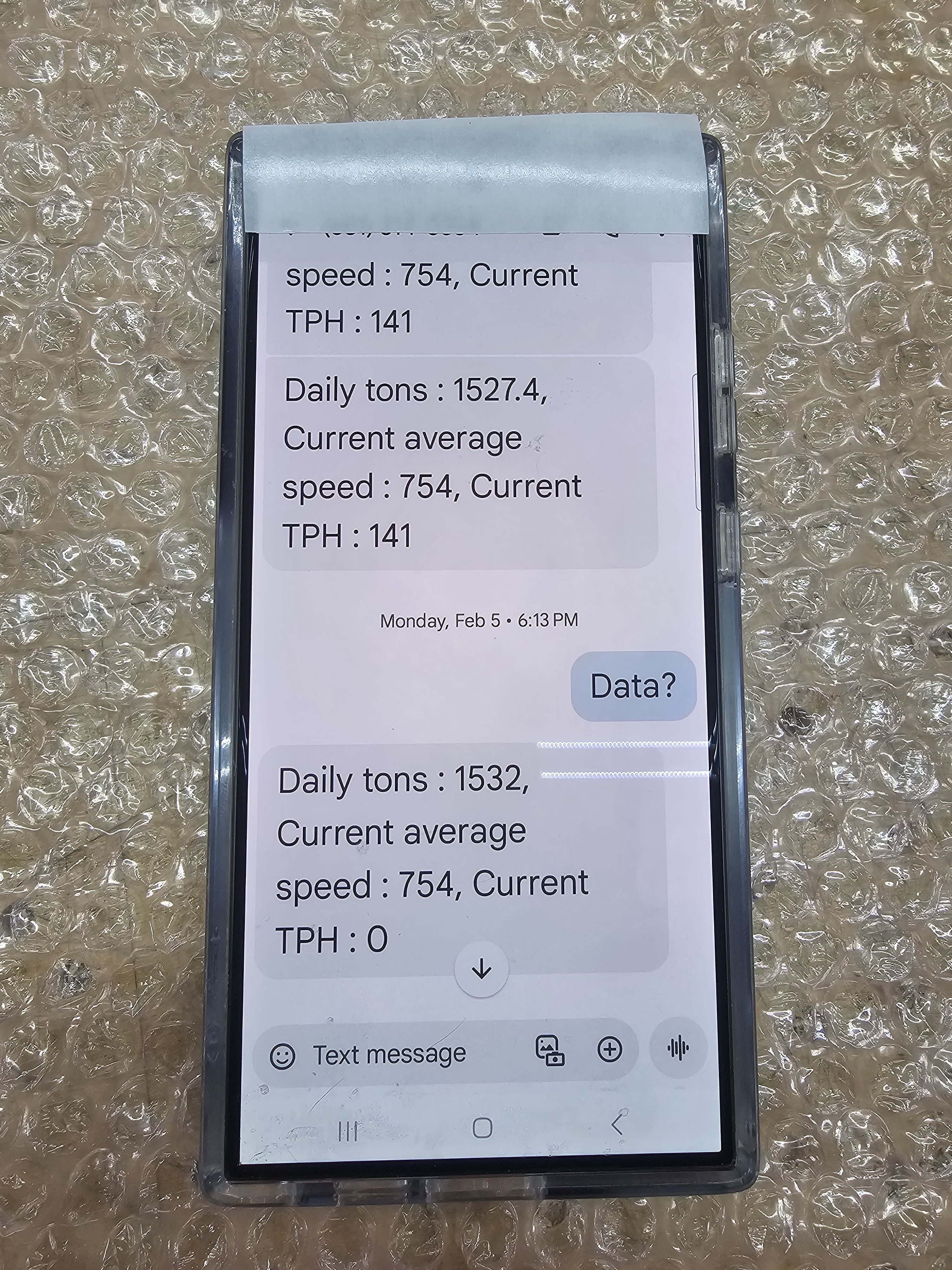

Belt Scale Cellphone Texting

The scale can be polled anytime for the current scale production information. The unit will respond with the daily total, current belt speed and current scale flow rate. An excellent option for seeing production anytime, anywhere.

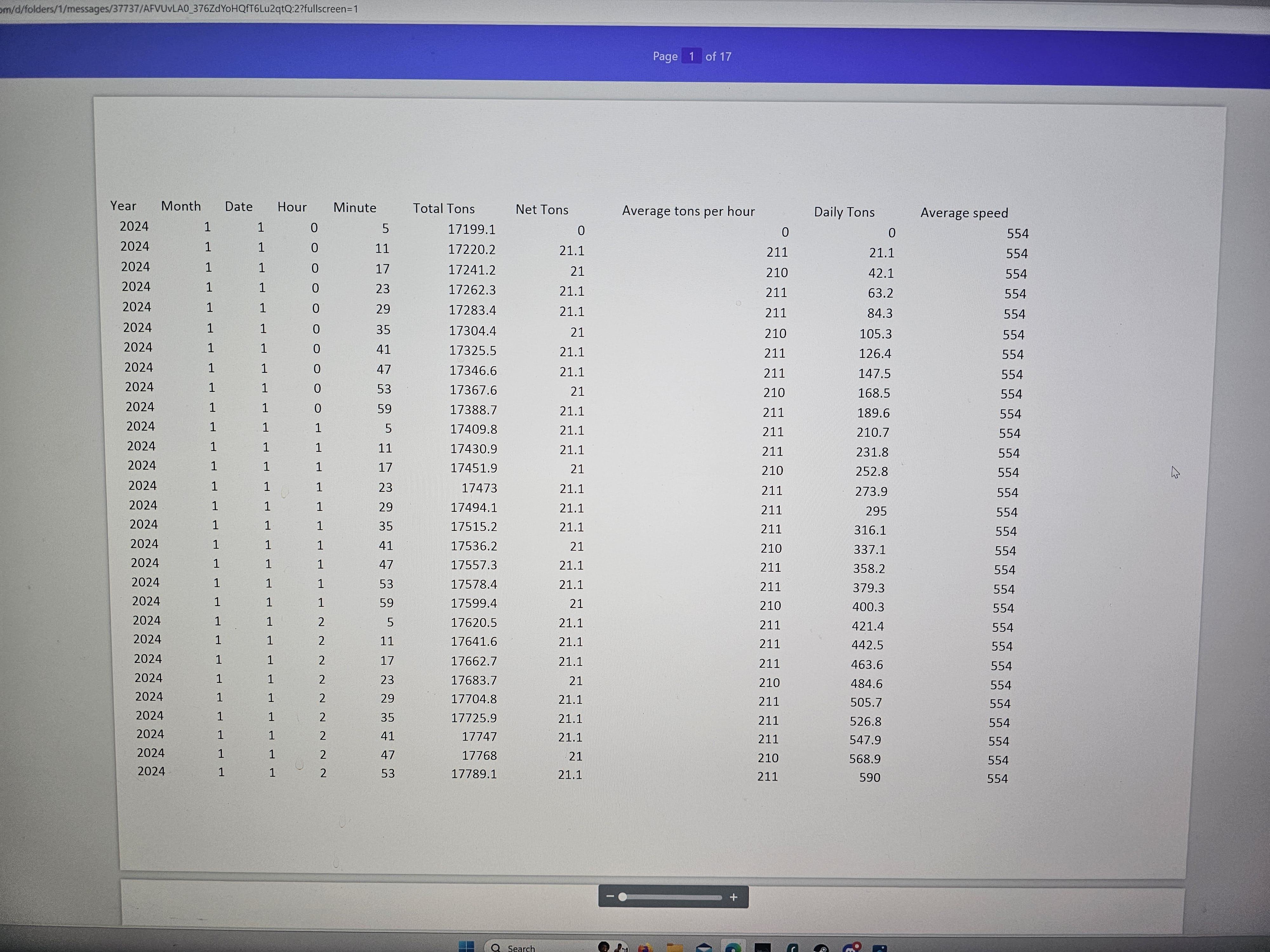

Belt Scale Cellular Data Collection

The scale unit collects real time scale data every 6 minutes and records the numbers in a Microsoft Excel spreadsheet. The scale emails the report at midnight every day to multiple selectable email addresses.

Data includes date and time, total weigh accumulated for the unit, net weight conveyed in the 6 minute period, average flow rate in the 6 minute period and a daily total weight.

Recipient email address can be added or deleted - changed via any cellphone texting application.
